Solution description
Fan lamps, used as an auxiliary appliance to air conditioners, enhance the efficiency of air conditioners. Fan lamps are aesthetically pleasing, equipped with fan blades and lampshades of various colors and styles, and have functions such as lighting, cooling, and decoration.

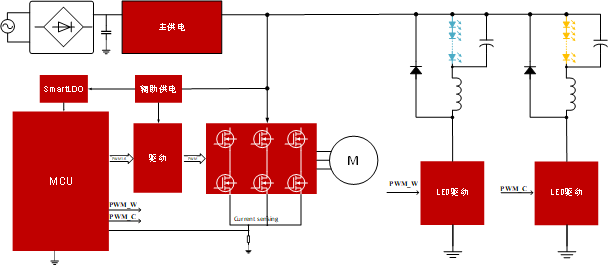

Application Diagram
Fan Lights
Solution Features

    Dual use of one light: Lighting and fan function

    Sensorless FOC, high efficiency, smooth operation, excellent mute effect

    Complete protection mechanism: over voltage, under voltage, over current, blocking, phase loss, short circuit and other protection

Product Recommendation
PNProduct type Description
BP3519Main power supplyLow PF isolation, external MOS
BP6526BAuxiliary power supplySmartLDO maximum output current 150mA, high efficiency, low standby power consumption
LKS32MC037EM6S8B
LKS32MC035EM6S8B		MCU32-bit MCU, RAM 4K, FLASH 32K, 48MHz main frequency, integrated op amp, comparator, built-in 40V P+N Predriver
LKS0405CGMOSSOP-8,BVds 40V
BP2523BAuxiliary power supply 160mA continuous current
LKS32MC037M6S8BMCU32-bit MCU, RAM 4K, FLASH 32K, 48MHz main frequency, integrated op amp, comparator
BP6911GatedriverFloating channel operation up to 600V
B50T040F
B50T070F		High Voltage BVds 500V, RDSon_typ 2.9(Ω)，TO252
BVds 500V, RDSon_typ 1.1(Ω)，TO252
LKS1D5005D
LKS1D5007DT

Power module

BVds 500V, RDSon_typ 21.4(Ω)，ESOP13
BVds 500V, RDSon_max 1.1(Ω)，ESOP13
