High Performance Lighting

current location： Home > Application>LED Lighting>High-Performance Lamp
Solution description
To provide a more comfortable , high energy-saving & good reliability LED driver solution for commercial luminaires is our continuous mission. BPS two stage isolated solution is adopted the boost controller BP2636X and the flyback controller BP3182EB, to provide a higher efficiency and reliable performance.

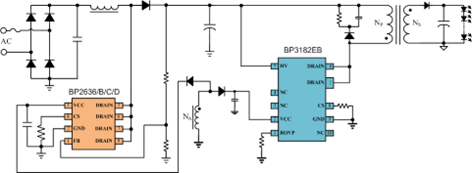

Application Diagram
High Performance Lighting
Solution Features

    PF>0.9, THD<10%

    Efficiency>90%

    Output current LF ripple<1%

    Support the wide output voltage range

    Built-in Output open/short circuit protections

    Good line & load regulation

Product Recommendation
76～264Vac PowerBoostFlyback
<30WBP2636B/CLBP3186DB
<40WBP2636CBP3187DB
<40WBP2636CBP3182EB
<50WBP2636DBP3187EB
