High Speed Blower

current location： Home > Application>Consumer Electronics>High Speed Hairdryer
Solution description
The solution's MCU integrates a 12-bit high-speed ADC, differential amplifier, comparator and other analog circuits; integrates a 5V LDO; integrates a hardware square root, divider and acceleration operation unit; and features a 48 MHz high-speed Cortex M0 core

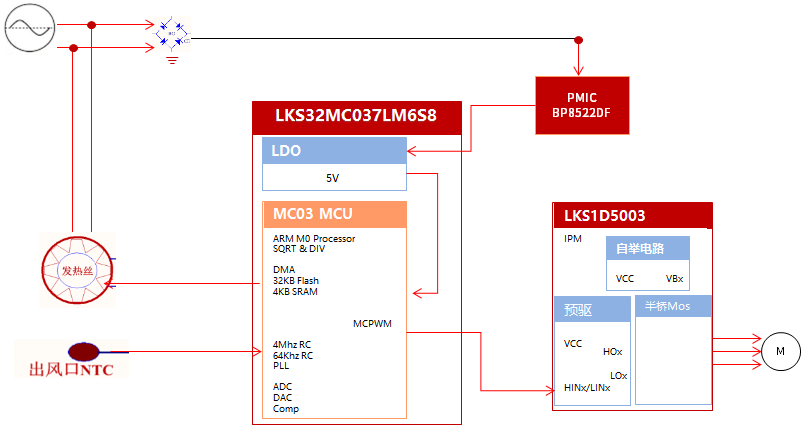

Application Diagram
High Speed Blower
Solution Features

    String wave FOC drive scheme, fast convergence, closed loop, low speed high torque start

    3S reach the target speed, start without delay, easily compatible with AC motor and more energy efficient

    Variable frequency motor + variable frequency drive, smaller volume and more power, good mute effect

    Complete protection mechanism: over voltage, over current, blocking, lack of phase protection

Product Recommendation
PNProduct Type
LKS32MC037M6S8MCU
BP8522DFACDC
BPA8504DDCDC

LKS1D5007DT

LKS1D5005D/DT

LKS1D5004D
LKS1D5003D

Half Bridge IPM
