30W~35W

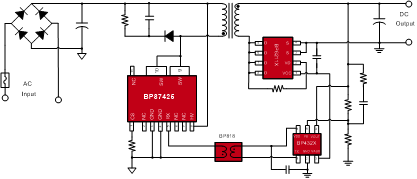

For the 30W~35W charger application, the SSR converter feedback by magnetic coupling can be used. The design is integrated with internal power switch, including power MOS and IGBT structure power switch. The primary converter is built-in high voltage start-up circuit. The converter integrated power IGBT structure is built in VCC supply capacitor, and can be used simple two winding transformer structure without VCC supply winding and rectifier diode.

Feedback by magnetic coupling

Direct drive by high end，

Internal IGBT structure power switch

Internal VCC capacitor

Without VCC auxiliary winding and circuit，meet PPS application

50mW no load input power

ESOP-10 package

Secondary controller internal CV control block

65kHz CCM/DCM
