Sketch
The LKS1D5005DT is a high voltage 1-Phase lPM(Intelligent Power Module). lt integrates HVlC andhigh-performance MOSFET for BLDC and PMSMmotors.Separate Open-Source Pins from Low-SideMOSFETs are for Current-SensingThe input works with Schmitt-trigger and the logicvoltage level is compatible with 3.3V/5V/15V signal.The LKS1D5005DTis available in ESOP13 package.
Advantage

    Built-in high-performance 500V/5A MOSFET

    Built-in bootstrap diode

    Robust at negative transient voltage

    Gate drive supply range from 10V to 20V3.3V, 5V and 15V inputlogic compatible

    UVLO for both high side and low side

    Built-in dead time to avoid cross-conduction

Application area
  • High-speed hair dryer
  • Fan
  • Electric tools

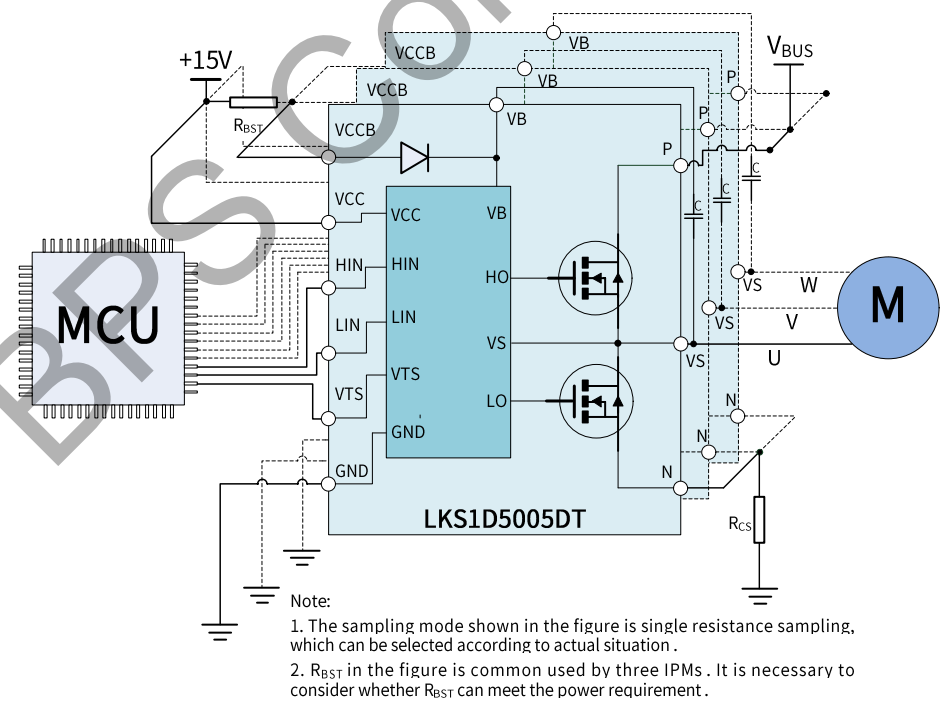

Schematic diagram
Package
Technical documents
Document type Title Type Download
Specification sheet LKS1D5005DT pdf Easy version Full version
