The BP6914 is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT. It has one input for high side and low side, and two output channels with internal dead time to avoid cross-conduction. The input logic level is compatible with 3.3V/5V/15V signal. The floating high side channel can drive a N-channel power MOSFET or IGBT up to 600V.
Advantage

    Floating channel operation up to 600V

    Single input for high side and low side

    EN enable both channels of output

    Robust at negative transient voltage

    Gate drive supply range from 10V to 20V

    3.3V, 5V and 15V input logic compatible

    UVLO for both high side and low side

    Built-in dead time

    Available in SOP8 package

Application area
  • H-bridge
  • Inverters

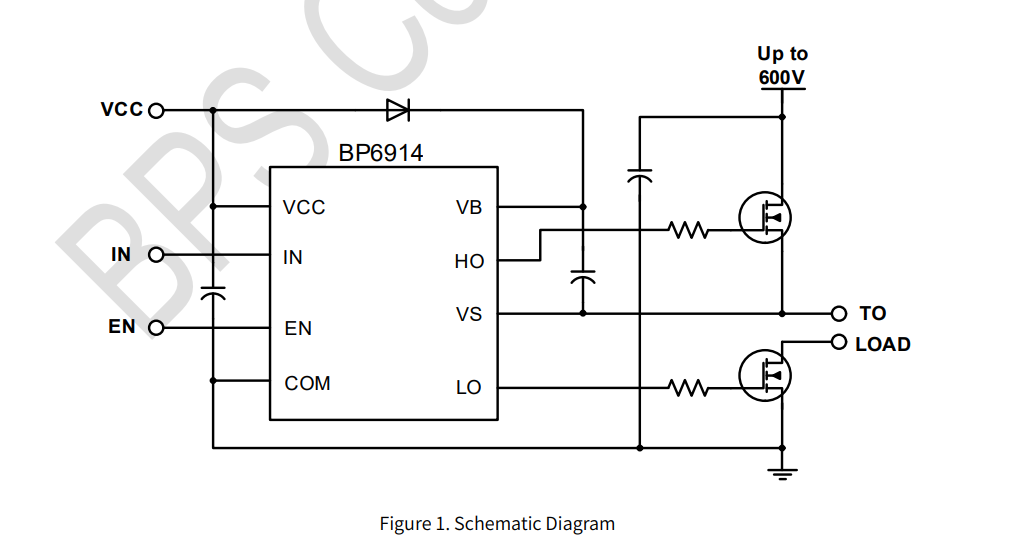

Schematic diagram
