BP2523B

Sample application
Sketch
The BP2523X is an ultra-low standby power non-isolated buck converter for constant output voltageapplication. The device is suitable for 85Vac~265Vacuniversal input non-isolated auxiliary power supply.
Advantage

    Standby power <20mW at 120Vac and 230Vac

    Fixed 15V or 18V output voltage

    Reduced audible noise

    Internal high voltage power MOSFET

    Integrated HV startup

    Excellent dynamic response for smaller outputvoltage ripple

    +5% accuracy of output voltage

    Frequency jitter for low EMl

    Integrated soft startup function

Application area
  • Auxiliary power application
  • Other applications

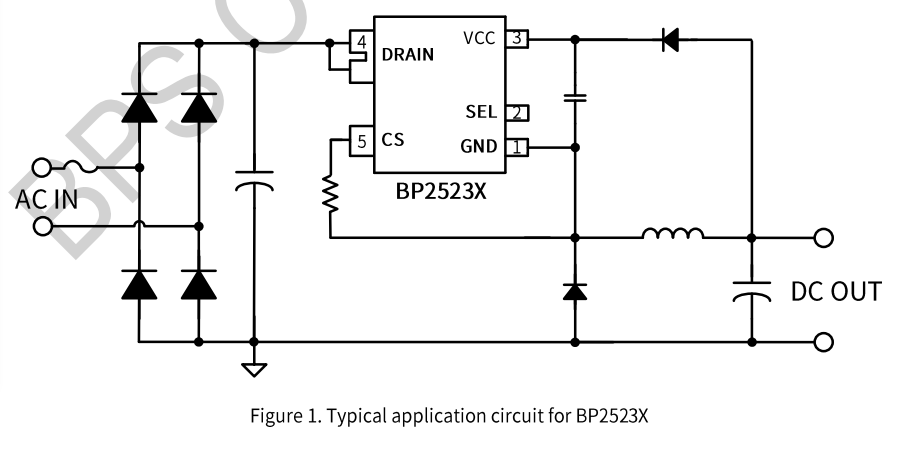

Schematic diagram

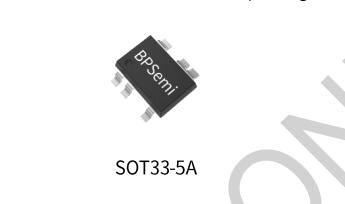

Package
Technical documents
Document type Title Type Download
Consult
