BP2522F

Sample application
Sketch
The BP2522X is an ultra-low standby power non-isolated buck converter for constant output voltage application. The device is suitable for 85Vac~265Vac universal input non-isolated auxiliary power supply.
Advantage

    Standby power <20mW at 120Vac and 230Vac

    Fixed 12V and 24V output voltage

    Minimized audible noise

    Internal High Voltage Power MOSFET

    Integrated HV startup

    Excellent dynamic response for smaller output voltage ripple

    +5% output CV accuracy

    Integrated soft startup function

    SOT33-5A package

Application area
  • Standby power supply for smart lighting
  • Other auxiliary power applications

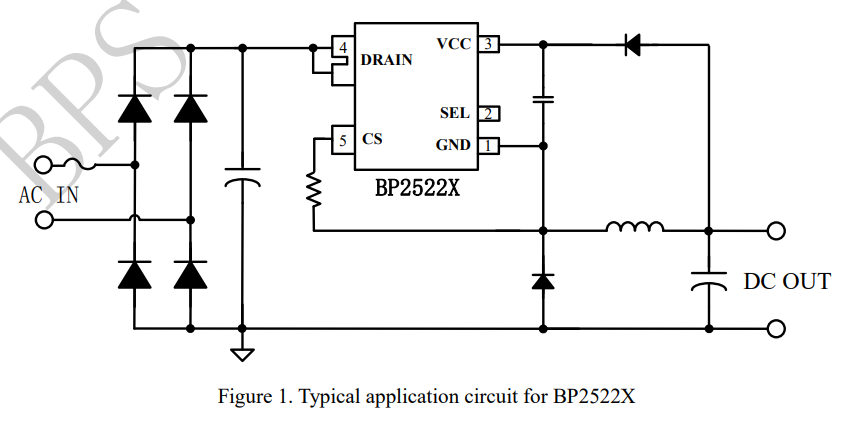

Schematic diagram
