BP2616E

Sample application
Sketch
The BP2616E is a high efficiency and high PF LED driver. The device operates in critical conduction mode and is suitable for universal input Boost LED driver.
Advantage

    Internal compensation for close loop

    control

    Critical conduction mode operation

    Internal 600V JFET power supply, no VCC capacitor

    ±5% LED output current accuracy

    Accurate LED open protection

    RTH for adjustable thermal regulation

    Available in SOP-8 package

Application area
  • LED Bulbs
  • LED Candle Lamps
  • Other LED Lighting

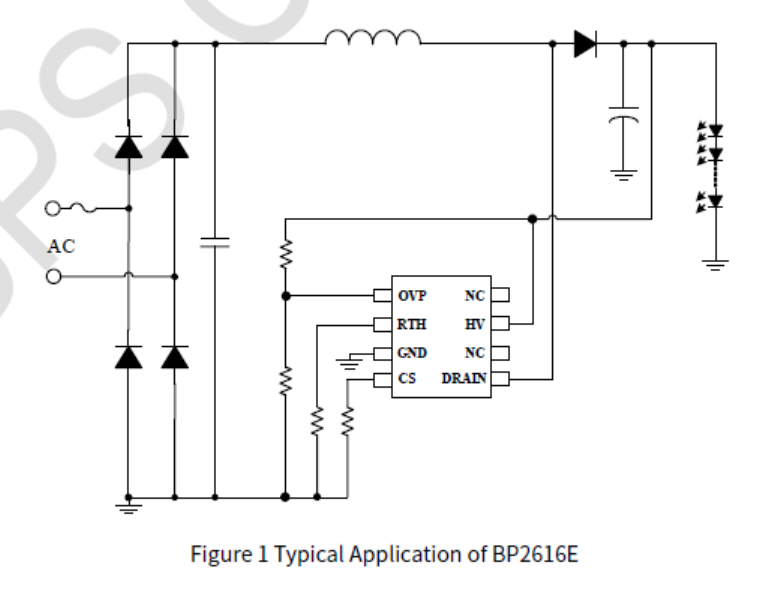

Schematic diagram

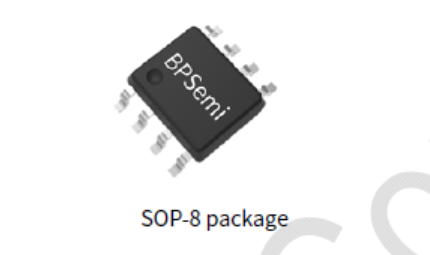

Package
Technical documents
Document type Title Type Download
Specification sheet BP2616E pdf Easy version Full version
