BP2636D

Sample application
Sketch
BP2636D is a Boost PFC driver with high efficiency, high PF and low THD. The device operates in critical conduction mode and is better for EMI and Efficiency improvement.
Advantage

    PF>0.9, THD<10% at Universal Input

    Single-winding inductor for simple design

    Internal 500V MOSFET

    Critical Conduction Mode

    HV JFET for fast startup

    Voltage reference accuracy of up to ±2%

    Integrated protections

    Available in SOP-8 Package

Application area
  • BOOST APFC pre-converter

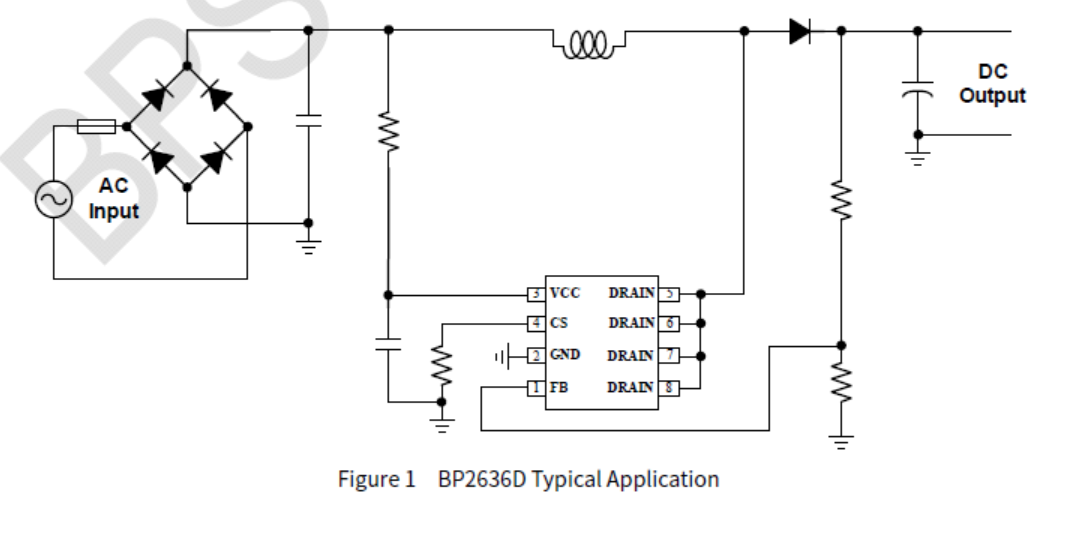

Schematic diagram

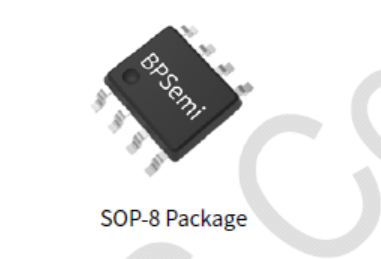

Package
Technical documents
Document type Title Type Download
Specification sheet BP2636D pdf Easy version Full version
