BPA8620PD

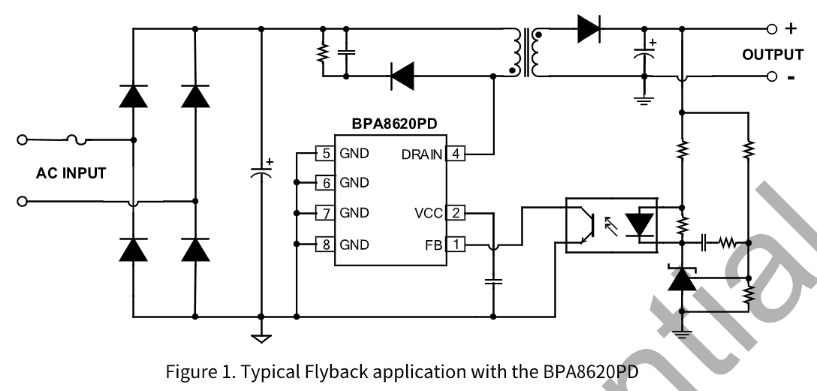

BPA8620PD is a highly integrated off-line switcher. it'sdesigned for Flyback application with universal input(85VAC-265VAC)range. Equipped with advanced technology, this system achieveshigh reliability and performance while maintaining lowcosts and reduced component count. For high reliability, it is integrated with 750v high voltagepower MOSFET.Current sensing circuit is also integrated toeliminate extra components and power consumption.

Integrated 750V power MOSFET

Self-biased

No-load power consumption <50mW at 230VAC withauxiliary winding,<150mW at 230VAC with self-biasing

Excellenttransient response,with no output overshoot

Internal soft start

Frequencyjitter for EMlimprovement

• Home appliances
• PC standby power supply
• Communication,industrial controls
• Adapter, charger

•
