BPA8618PD

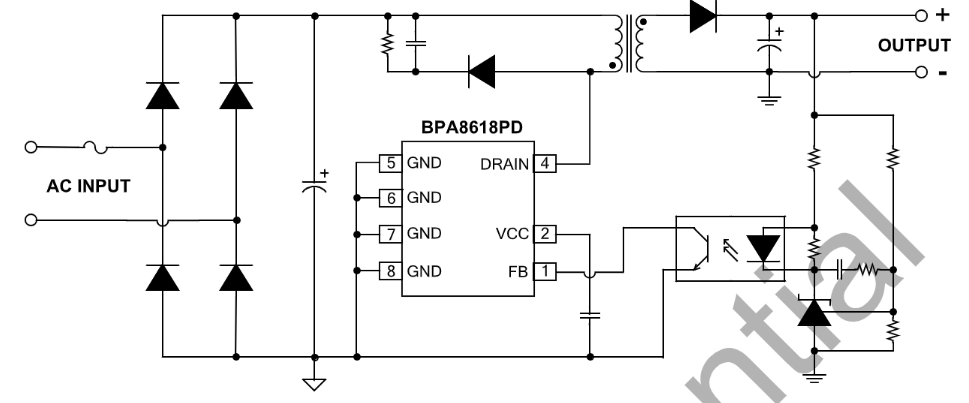

BPA8618PD is a highly integrated off-line switcher. lt'sdesigned for Flyback application with universal input(85VAC-265VAC)range. By equipped with a series of advanced technology, itachieved high reliability, high performance, and lowsystem cost, reduced component count in the same time. For high reliability, it is integrated with 750V high voltagepower MOSFET. Current sensing circuit is also integratedto eliminate extra components and power consumption.

Integrated 750V power MOSFET

Self-biased

No-load power consumption <50mW at 230VACwith auxiliary winding,<150mW at 230VAC withself-biasing

Excellent transient response,withno output

overshoot

Internal soft start

Frequencyjitter for EMl improvement

• Home appliances
• PC standby power supply
• Communication, industrial controls
• Adapter, charger

•
