BPA8616P

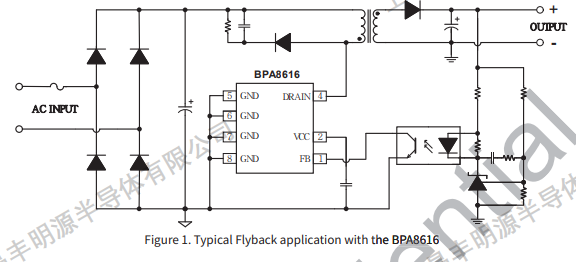

BPA8616 is a highly integrated off-line switcher. it'sdesigned for Flyback application with universal input(85VAC-265VAC) range. By equipped with a series of advanced technology, itachieved high reliability, high performance, and lowsystem cost, reduced component count in the sametime. For high reliability, it is integrated with 700v highvoltage power MOSFET. Current sensing circuit is alsointegrated to eliminate extra components and powerconsumption.

Integrated 700V power MOSFET

Self-biased

No-load power consumption <50mW at 230VACwith auxiliary winding, <150mW at 230VAC withself-biasing

Excellent transient response, with no output overshoot

Internal soft start

Frequency jitter for EMl improvement

Distance between highlow voltageandpins >3mm (DlP-7 package)

• Home appliances
• PC standby power supply
• Communication, industrial controls
• Adapter, charger

•
