Sketch
BPA8616 is a highly integrated off-line switcher. lt'sdesigned for Flyback application with universal input(85VAC-265VAC) range. By equipped with a series of advanced technology, itachieved high reliability, high performance, and lowsystem cost, reduced component count in the sametime. For high reliability, it is integrated with 700v highvoltage power MOSFET. Current sensing circuit is alsointegrated to eliminate extra components and powerconsumption.
Advantage

    Integrated 700V power MOSFET

    Self-biased

    No-load power consumption <50mW at 230VACwith auxiliary winding, <150mW at 230VAC withself-biasing

    Excellent transient response, with no output overshoot

    Internal soft start

    Frequency jitter for EMlimprovement

Application area
  • Home appliances
  • PC standby power supply
  • Communication, industrial controls
  • Adapter, charger

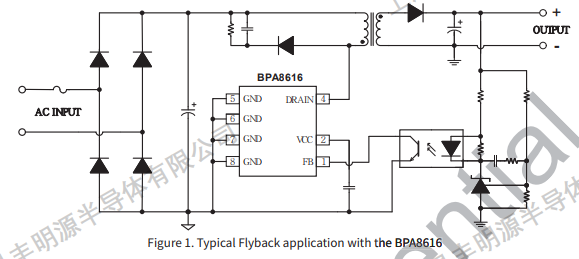

Schematic diagram
Package
Technical documents
Document type Title Type Download
Specification sheet BPA8616D pdf Easy version Full version
