BP85956P

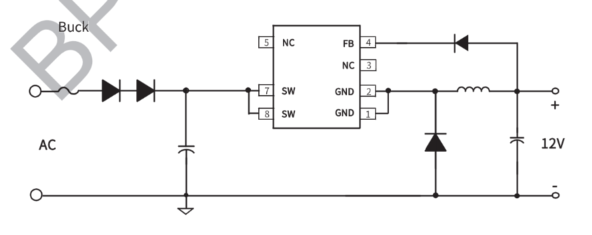

The BP85956P is a high performance, highlyintegratedpower supplyswitcher IC with lowstandbyconsumption. The BP85956p can be configured asbuck, buck-boost topologies for universal 85~265V ACinputs. The BP85956P integrates a 650 V power MOSFET, ahigh-voltage current source for self-biasing, a currentsensing circuit, an output feedback circuit and acontroller.ExternalvCccapacitor and loopcompensation components can be eliminated, whichreduces cost and size of overall power systems, andimproves reliability.

Integrated VCC capacitor

Integrated 650V power MOSFET

Integrated high-voltage current source for selfbiasing

No load consumption <50mW at 230VACFixed 12V output

Fast transient response and low output ripple

Optimized line and load regulation

Reduced audible noise at light load

• Home appliances
• Motor driver standby power
• loT, smart home, smart LED drivers

•
