BP85956D

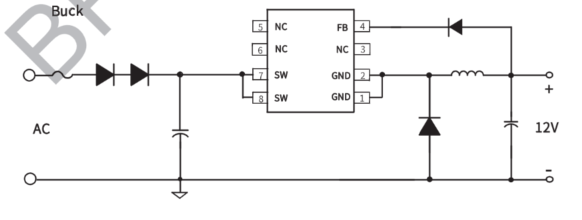

The BP85956Disahighperformance,highlyintegrated power supply switcher lC with low standby!consumption.The BP85956D can be configured asbuck, buck-boost topologies for universal 85-265V ACinputs. The BP85956D integrates a 650 V power MOSFET, ahigh-voltage current source for self-biasing, a currentsensing circuit, an output feedback circuit and acontroller.

Integrated VCC capacitor

Integrated 650V power MOSFET

Integrated high-voltage current source for selfbiasing

50mW no load consumption at 230VAC

Fixed 12V output

Fast transient response and low output ripple

• Home appliances
• Motor driver standby power
• loT, smart home, smart LED drivers

•
