BP85924DA

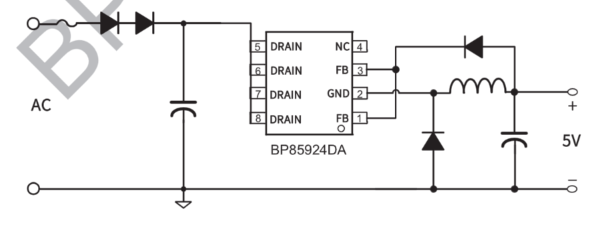

The BP85924DA is a high performance, highlyintegrated power supply switcher iC with low standbyconsumption. The BP85924DA can be configured asbuck, buck-boost topologies for universal 85~265VACinputs. The BP85924DA integrates a 650 V power MOSFET, ahigh-voltage current source for self-biasing, a currentsensing circuit, an output feedback circuit and acontroller.ExternalVCccapacitorand loopcompensation components can be eliminated, whichreduces cost and size of overall power systems, andimproves reliability.

Integrated vcC capacitor

Integrated 650V power MOSFET

Integrated high-voltage current source for selfbiasing

50mW no load consumption at 230VAC

Fixed 5V output

Fast transient response and low output ripple

• Home appliances
• Motor driver standby power
• loT, smart home, smart LED drivers

•
