BPA8505P

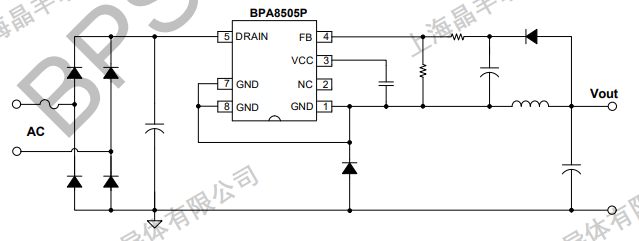

The BPA8505P is a high performance, highly integratedpower supply switcher lC with low standby consumption.The BPA8505P can be configured as buck, buck-boost, orflyback topologies for universal 85-265V Ac inputs.The BPA8505P integrates a 700 V power MOSFET, a high.voltage current source for self-biasing, a current sensingcircuit, and an advanced controller.External loopcompensation components can be mostly eliminated,which reduces cost and size ofoverall power systems, andmeantime achieves high reliability.

Integrated 700V power MOSFET

Integrated high-voltage current source for self-biasing

<100mW no load consumption at 230VAC

Excellent transient response

Low output ripple

Optimized line and load regulation

Reduced audible noise at light load

• Home appliances
• Motor driver standby power supply
• loT, smart home, smart LED drivers
• Industrial controls

•
