简述
The BP6904A is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT. Ithas one input for high side and low side, and twooutput channels with internal dead time to avoidcross-conduction. The input logic level is compatible with 3.3V/5V/15Vsignal. The floating high side channel can drive a N-channel power MOSFET or IGBT up to 600V
优势

    Floating channel operation up to 600V

    Single input for high side and low side

    Shut down input turns off both channels

    Robust at negative transient voltage

    Gate drive supply range from 10V to 20V

    3.3V, 5V and 15V input logic compatible

    UVLO for both high side and low side

    Built-in dead time

    Available in SOP8 paekage

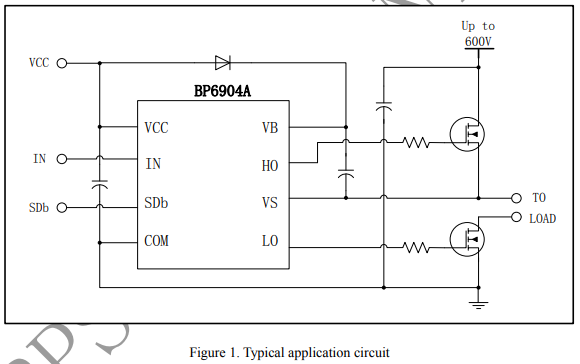

典型应用原理图
技术文档
文档类型 标题 类型 文件下载
规格书 BP6904A pdf 简易版 完整版
