简述
The BP6914 is a high voltage, high speed half-bridge pre-driver for power MOSFET and IGBT. It has one input for high side and low side, and two output channels with internal dead time to avoid cross-conduction. The input logic level is compatible with 3.3V/5V/15V signal. The floating high side channel can drive a N-channel power MOSFET or IGBT up to 600V.
优势

    Floating channel operation up to 600V

    Single input for high side and low side

    EN enable both channels of output

    Robust at negative transient voltage

    Gate drive supply range from 10V to 20V

    3.3V, 5V and 15V input logic compatible

    UVLO for both high side and low side

    Built-in dead time

    Available in SOP8 package

应用领域
  • H-bridge
  • Inverters

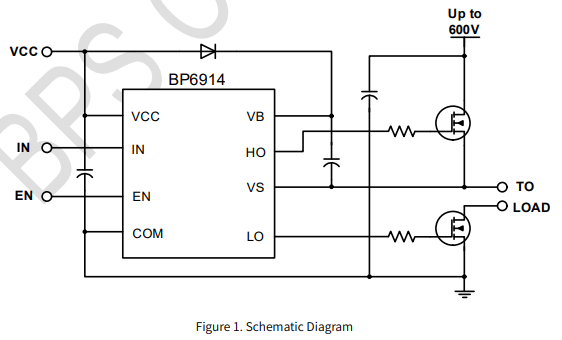

典型应用原理图
封装
技术文档
文档类型 标题 类型 文件下载
规格书 BP6914 pdf 简易版 完整版
