简述

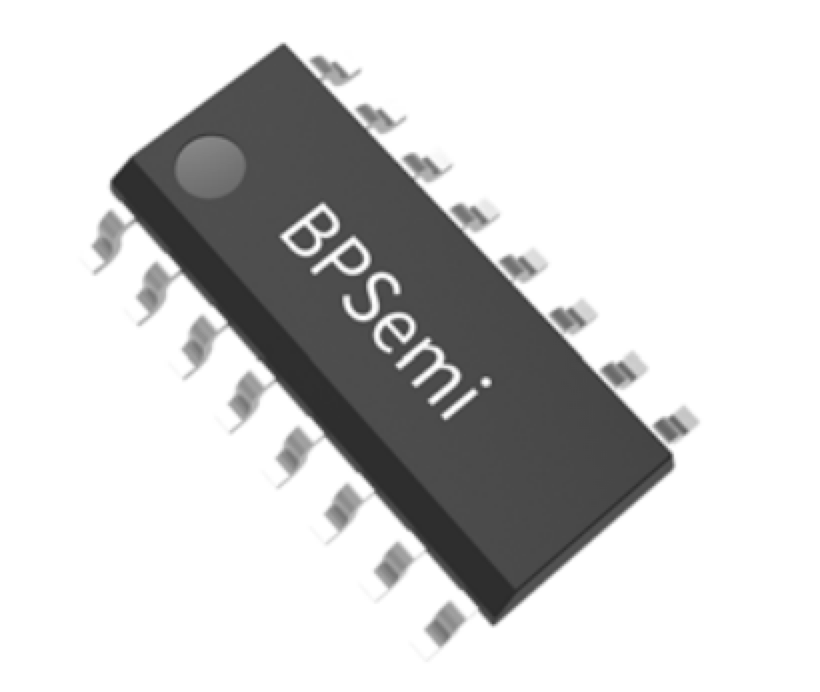

The BP6830 is a three-phase 40V, high speed pre-diver for power P/N MOSFET. It has two inputs for high side and low side, and two outputs per channel with internal dead time to avoid cross-conduction. The input logic level is compatible with 3.3V/5V/15V signal. Output 10V gate voltage for both PMOS and NMOS. It also built in a 5V/40mA LDO for MCU or other device power supply, and have thermal shut down protection for safety.
优势

    Three-phase outputs for P/N MOS half-bridge

    Operation supply range from 8V to 40V

    Independent input for high side and low side

    Output 10V VGS for both PMOS and NMOS

    3.3V, 5V and 15V input logic compatible

    Built-in 5V/40mA LDO

    Built-in dead time

    Built-in TSD

    Available in ESOP16 package

应用领域
  • H-bridge
  • Inverter
典型应用原理图
封装
技术文档
标题 类型 规格书下载
BP6830 pdf 简易版 完整版
