简述
The BP870X family is a series of highly integratedcurrent mode PwM switcher ICs with highperformance, low standby consumption suitable fordesigning flyback converters up to 25 W. The BP870X integrates a 650 V power MOSFET and ahigh-voltage current source which eliminates thestartup resistors.lt supports CCM and DCM operations,At full load, the lC operates in 65 kHz fixed frequency.
优势

    Less than 75 mW no-load

    consumptionIntegrated 650 V power MOSFET

    High-voltage current source eliminates startup resistors

    Internal 4 ms soft start

    Fixed 65 kHz frequency at heavy load

    Green mode at light load

应用领域
  • QC/USB PD Chargers
  • AC/DC Adapters
  • Standby Power supply

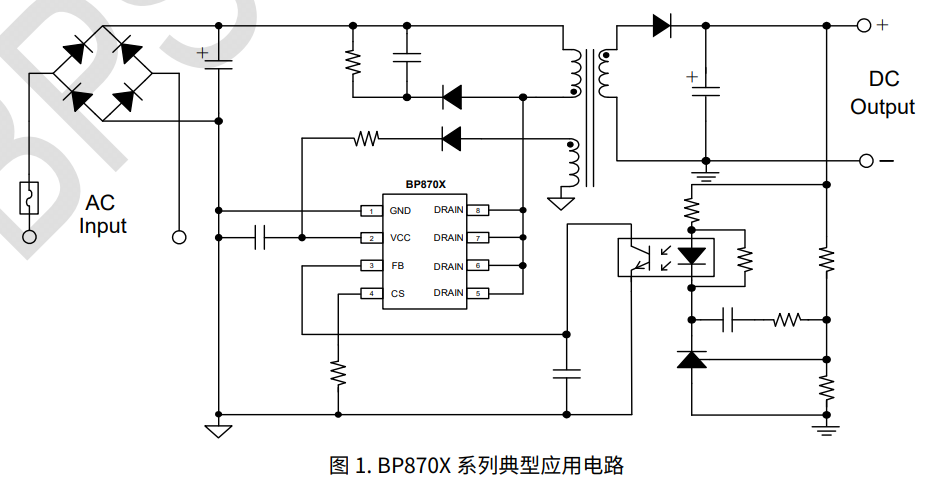

典型应用原理图

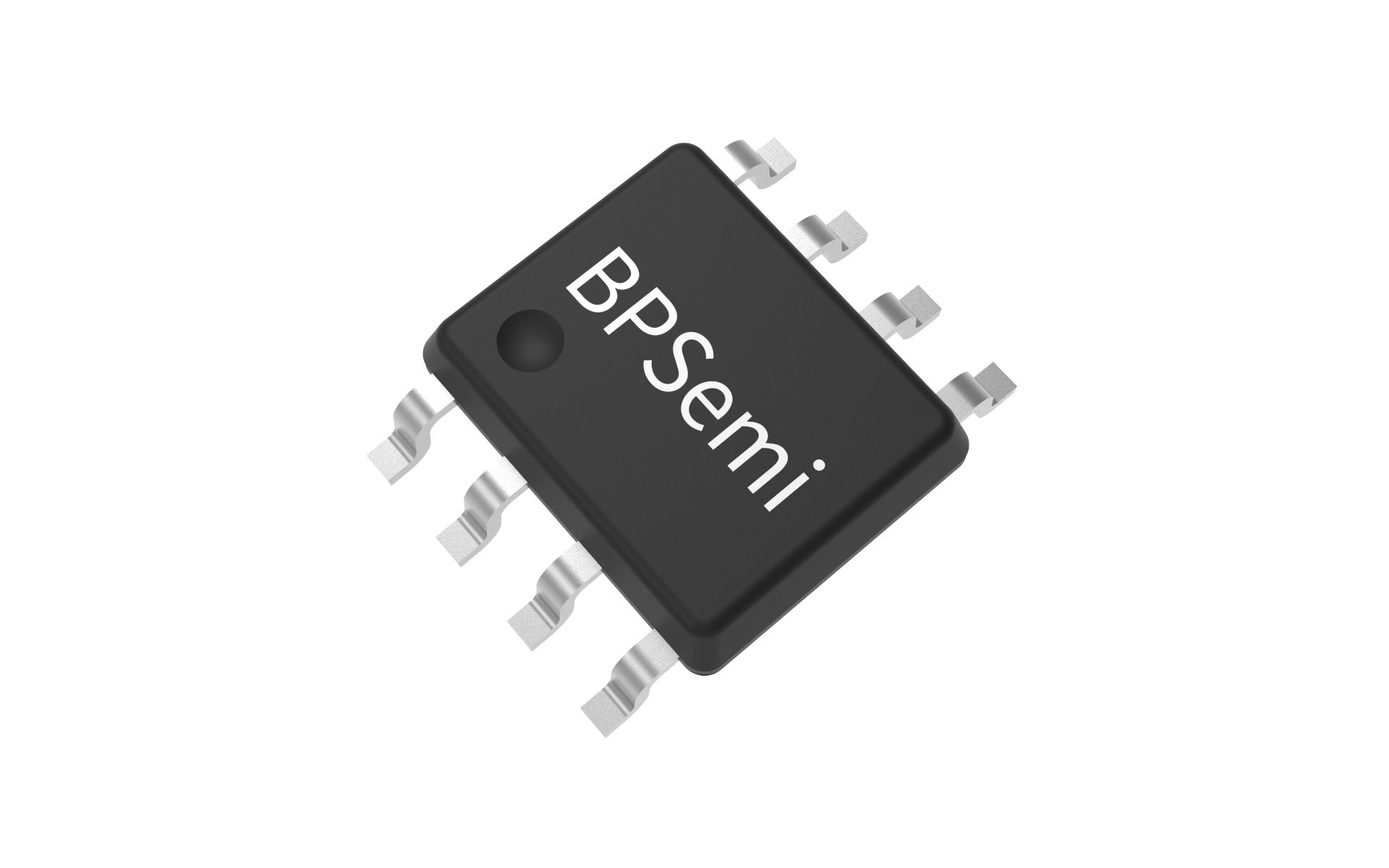

封装
技术文档
标题 类型 规格书下载
BP8708D pdf 简易版 完整版
