BP2525F

Sample application
Sketch
The BP2525X is an ultra-low standby power non-isolated buck converter for constant output voltageapplication. The device is suitable for 85Vac~265Vacuniversalinput non-isolated auxiliary power supply.
Advantage

    Standby power <20mW at 120Vac and 230Vac

    Fixed 3.3V and 5V outputvoltage

    Support direct 3.3V output without LDO

    Reduced audible noise

    Internal High Voltage Power MOSFET

    Integrated HV startup

    Excellent dynamic response for smaller outputvoltage ripple

    士5% output CVaccuracy

    Integrated soft startup function

    SOT33-5A package

Application area
  • Standby power supply for smart lighting
  • Other auxiliary power applications

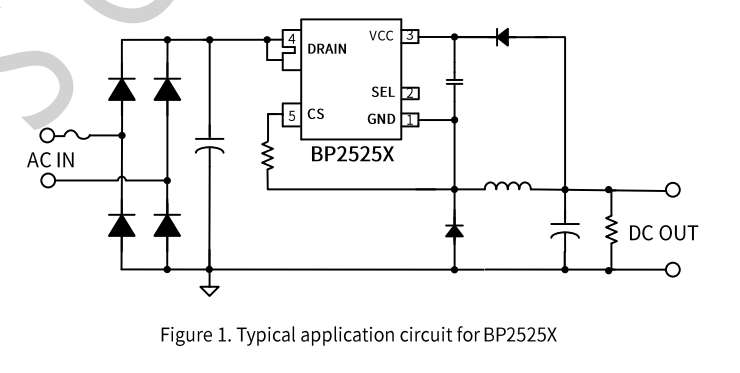

Schematic diagram

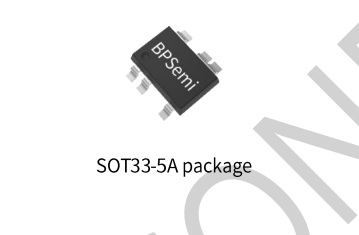

Package
